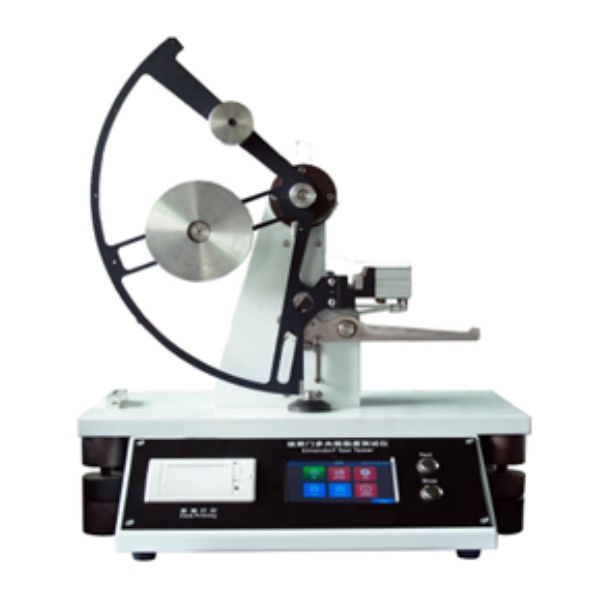

SLD-02 Tear Tester

The SLD-02 Tear Tester is specifically designed to measure the tear strength of paper and cardboard materials. Additionally, it is suitable for testing the tear resistance of various sheet composite materials, including textiles, leather, plastic films, metal foils, and similar products.

ꁸ Top
+86 18560013985
ꁗ WeChat
WhatsApp

Email *

Message *

뀸Previous： ST-01 Smoothness Tester

뀹Next： Tear Tester SLD-01

Application

Test Process

In the test process, a cutting knife is used to create a slit that stops 43mm from the opposite edge of the sample. Once the slit is made, a pendulum mechanism is released under the influence of gravity, allowing the slit to extend through the remaining 43mm of the sample. The energy expended by the pendulum during this tearing process is measured to calculate the average tear force.

Technical Features

Jaw Width: 74.8mm, suitable for samples measuring 63×76mm or 63×50mm.
Automatic Reset: The pendulum resets automatically once it is manually pulled back to an angle of less than 0 degrees.
User-Friendly Operation: The device features a specially designed interface for easy operation.
Testing Direction Indicators: Allows for testing in horizontal, vertical, or unspecified directions.
Level Adjustment: Integrated left-right internal horizontal reference for precise leveling.
Calibration Function: Includes zero-value calibration to measure energy loss and compensate for errors using specific calibration weights.
Adjustable Machine Feet: Designed with a double-nut system to prevent loosening, ensuring stability and accurate leveling during the test.
Pneumatic Sample Clamping: Minimizes errors caused by human factors through the use of pneumatic clamping.
Computer-Assisted Level Adjustment: Guarantees proper testing alignment for accurate results.
Multiple Pendulum Capacities: Accommodates different testing requirements.
5-Inch Color Touch Screen: Provides a simple and intuitive user interface.
Air Filter/Regulator: Extends the service life of pneumatic components.

Major Standards

The SLD-02 Tear Tester complies with the following standards: ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO 1974, TAPPI T414.
