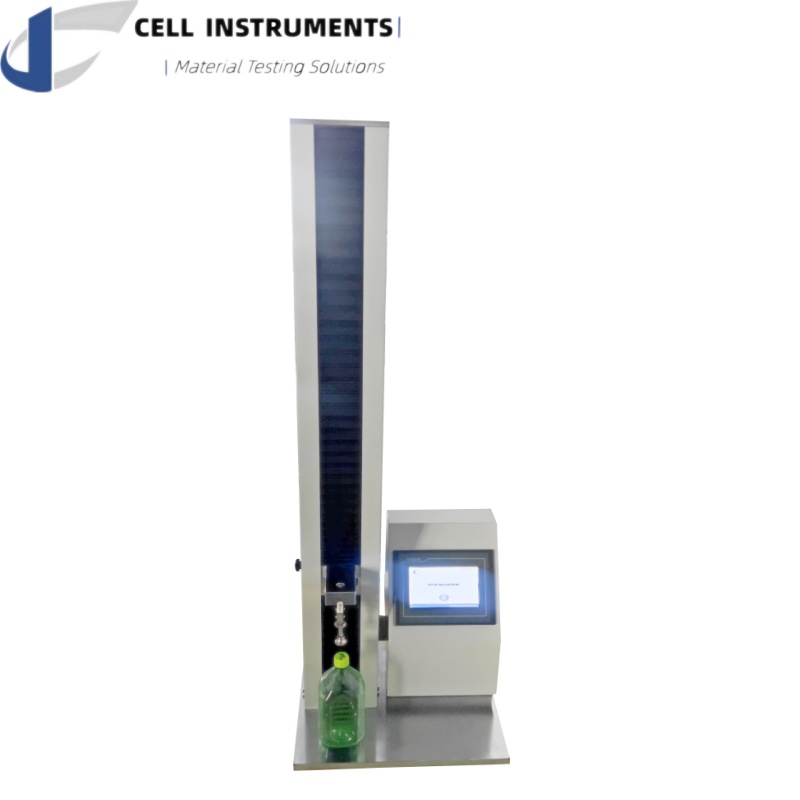

TLT-01 Top Load Tester

Discover the TLT-01 Top Load Tester, a reliable solution for ensuring the structural integrity of packaging containers. Optimize your packaging design and meet industry standards with precise and accurate load testing.

ꁸ Top
+86 18560013985
ꁗ WeChat
WhatsApp

Email *

Message *

뀸Previous： TCT-01 Tensile and Compression Tester

뀹Next： MPT-01 Medical Packaging Tester

Application

Load testing is essential for ensuring the structural integrity and reliability of packaging containers such as bottles, jars, drums, trays, cartons, and boxes. The TLT-01 Top Load Tester is designed specifically for this purpose. It verifies that these containers can withstand the stresses of stacking, shipping, and storage without collapsing or deforming, thereby protecting the product inside. This testing helps meet industry standards, preventing product damage and loss, and ultimately saving costs associated with returns and replacements. Additionally, it aids in optimizing packaging design and material usage, ensuring a balance between strength and efficiency while maintaining the brand’s reputation for quality and reliability.

The TLT-01 Top Load Tester is equipped with advanced features to ensure precise and reliable testing results. Key technical features include:

A 7-inch HMI touch screen for intuitive and straightforward operation.
PLC control for efficient and stable functioning.
Precision ball lead screw for reliable results.
Adjustable test speed to accommodate various testing requirements.
Compatibility with multiple compression plates of different shapes and diameters.
Overload protection and automatic returning function for safety and convenience.
Optional inclusion of a microprinter for direct result printing.
RS232 port for data communication and professional software (optional).

The TLT-01 Top Load Tester offers several unique testing programs to cater to diverse testing needs:

Peak: Measures the container's crush/compressive load to determine its maximum strength.
Fixed Deformation: Measures the load when the container reaches a specified deformation level.
Fixed Load: Measures how the sample deforms under a predetermined load.
Single Compression: Compresses the container once and then analyzes the results.
Cycle Compression: Compresses the container in cycles and then analyzes the results to assess durability.

Top load testing with the TLT-01 Top Load Tester involves placing the container on the testing platform, aligning it properly, and applying a compressive force from the top. The force is increased gradually until the container deforms or collapses. The tester measures the applied force and deformation, recording the maximum force the container withstands or the deformation it shows under a constant load. The data is analyzed to assess the container’s strength and performance against predefined standards.

Test Range	0-1000N (or as required)
Sample Height	700mm
Sample Diameter	120mm max
Test Speed	1~500mm/min
Displacement Accuracy	0.01mm
Force Accuracy	0.5% Full Scale
Control	PLC and HMI Screen
Data Output	screen, Microprinter (optional), RS232 (optional)
Power	110~ 220V, 50/60Hz
